STM32F030C8T6 is a low-cost general-purpose 32-bit MCU (Microcontroller Unit) from STMicroelectronics (ST), belonging to the STM32F0 Value Line series.

STM32F030C8T6 is a low-cost general-purpose 32-bit MCU (Microcontroller Unit) of the STM32F0 Value Line from STMicroelectronics (ST). It adopts the lightweight ARM Cortex‑M0 core, featuring low cost, low power consumption, basic motor control and auxiliary main control for power supplies. It is the most popular economical microcontroller for industrial equipment, switching power supplies, small home appliances and industrial control boards.

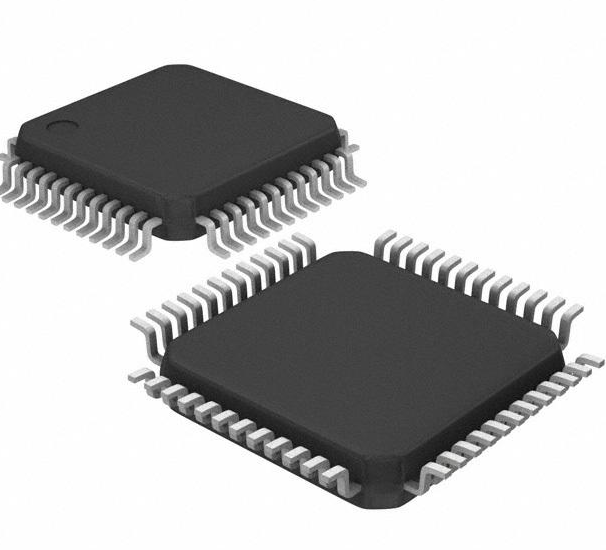

Package: LQFP‑48 (7×7mm), industry-standard SMD package.

II. Core Electrical Parameters

1. Core & Computing Performance

• Core: 32-bit RISC ARM Cortex‑M0 core with ARMv6‑M instruction set

• Maximum operating frequency: 48 MHz

• Computing performance: Approximately 0.9 DMIPS/MHz, integrated single-cycle hardware multiplier and hardware divider

• Interrupt: NVIC (Nested Vectored Interrupt Controller) for fast response to external signals

2. Memory Resources

• Flash program memory: 64 KB (the suffix C8 in the part number stands for 64 KB)

• SRAM: 8 KB with hardware parity check

• Built-in CRC hardware calculation unit for communication data verification

3. Power Supply & Temperature

• Operating voltage: 2.4 V ~ 3.6 V (perfectly compatible with the standard 3.3 V power supply of power boards)

• Operating temperature: Industrial grade -40℃ ~ +85℃

• Low-power modes: Sleep, Stop and Standby modes, suitable for energy-saving standby devices

• Integrated POR/PDR power-on/power-down reset circuits to simplify peripheral circuits

4. Clock System

• External crystals: 4~32 MHz high-speed crystal; 32.768 kHz RTC calibration crystal

• Internal RC oscillators: 8 MHz high-speed RC (up to 48 MHz via PLL multiplication), 40 kHz low-speed RC, eliminating the need for external crystals
