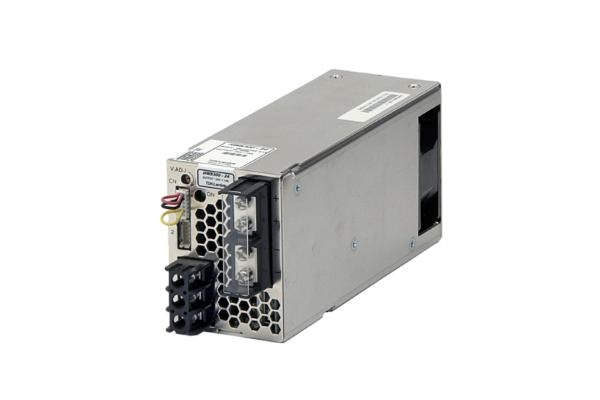

TDK-Lambda HWS Series 300W Single Output AC-DC Industrial Power Supply

TDK-Lambda HWS Series 300W Single Output AC-DC Industrial Power Supply with 24V output. Featuring industrial-grade wide input voltage, outstanding stability and fan cooling, it is specially designed for centralized power supply of automation equipment cabinets.

II. Complete Core Electrical Specifications

1. Input Specifications

AC Input: 85～265VAC (Universal wide voltage for global use)

Compatible DC Input: 120～330VDC

Single-phase input with built-in EMI filter, Class B EMC compliance

Typical Efficiency: 85%

2. Output Specifications (Core)

Rated Output Voltage: 24VDC

Adjustable Range: 19.2～28.8VDC (±20% adjustable)

Rated Current: 14A

Peak Current: 16.5A

Rated Power: 300W; Maximum Peak Power: 336W

Equipped with Remote Sense function to compensate voltage drop on long cables

Optional PV version: External remote voltage adjustment via 0–10V / 4–20mA signal

III. Application Scope

Industrial Automation (Most Common Application)

Power supply for PLC control cabinets, servo auxiliary power, solenoid valves, relays, cylinder drivers, inverter control circuits and production line actuators.

Precision & Semiconductor Equipment

Centralized power supply for CNC machine tools, industrial robots, vibration monitoring sensors (such as ICP-42688 accelerometers), wafer inspection equipment, test fixtures and online monitoring instruments.

Inspection & Measurement Control Systems

Power supply for vibration acquisition modules, data acquisition cards, 24V transmitters, industrial cameras and sensor modules.

Model List

HWS150A-24/A

HWS300-24

HWS600-24

HWS1500-24
