EFS22D67-03 is a TDK EFS Series Feedback-Type Surface Potential Sensor
EFS22D67-03 is a feedback-type surface potential sensor from TDK EFS Series, supplied as an integrated complete module consisting of a probe, cable and drive PCB.It is specially designed to measure the electrostatic potential on the surface of charged carriers such as photoreceptor drums and electrostatic rollers, and is primarily applied in color copiers, laser printers and industrial electrostatic inspection equipment.
It adopts a tuning-fork piezoelectric vibrating chopper structure paired with self-developed feedback circuitry. The probe electrode maintains the same potential as the measured surface, eliminating errors caused by sensing distance and ambient temperature/humidity to achieve high-precision electrostatic voltage measurement.
表格
| Item | Standard Rating |
|---|---|
| Model | EFS22D67-03 |
| Sensor Type | Feedback-Type Surface Potential Sensor |
| Supply Voltage | DC 24V ±10% |
| Typical Operating Current | 150mA |
| Measurable Potential Range | -1000V ~ 0V (for negative potential measurement, compatible with printer photoreceptor drums) |
| Analog Output Signal | Linear 0~4.5V corresponding to measured potential; output fluctuation ≤ ±0.05V |
| Response Time | Typical 11ms, suitable for high-speed printing equipment |
| Valid Sensing Distance | 1.5 ~ 3.5mm (excellent output stability within this range) |
| Recommended Standard Sensing Distance | 2.5mm |

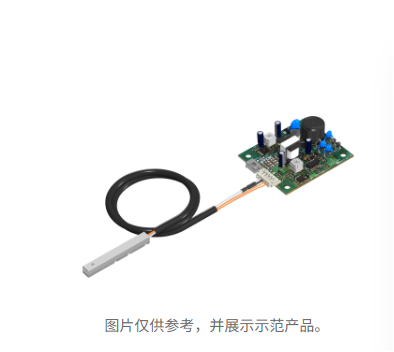

| Probe Wiring Structure | Split probe with flexible extended cable (elongated metal sensing head shown in the figure) |
| Environmental Compliance | EU RoHS Compliant |
| Product Status | Mass Production, Available for Shipment |
| Standard Manufacturer Lead Time | 24 Weeks |
