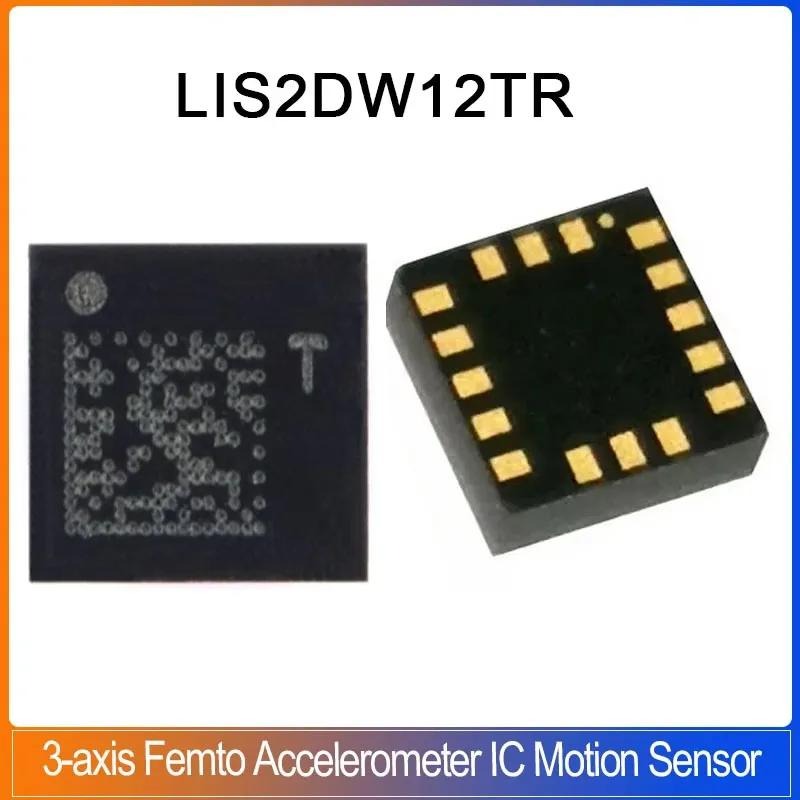

STMicroelectronics LIS2DW12 Series Ultra-Low Power 3-Axis MEMS Digital Accelerometer

The LIS2DW12 series ultra-low power 3-axis MEMS digital accelerometer belongs to ST femto micro motion sensor family. The suffix LTR stands for LGA12 package and tape & reel packaging. It shares identical functions and electrical parameters with the widely available LIS2DW12TR in the market; the two parts only differ in silkscreen and production batch, and are fully interchangeable.

It measures X/Y/Z triaxial acceleration, vibration, tilt, free fall and tap events. Equipped with an embedded hardware motion engine, it avoids heavy computation load on the MCU. Featuring ultra-low power consumption, it is ideal for battery-powered portable devices.

Key Specifications

1. Electrical Characteristics & Power Consumption (Core Advantage)

Supply Voltage: 1.62V ~ 3.6V (compatible with 3.3V / 1.8V lithium battery systems)Power-down Mode: 50 nA (near-zero power draw)Low-power Operating Mode: 0.38μA ~ 1μAHigh-performance Mode: Up to 90μANoise: Only 1.3 mg RMS in low-power mode, capable of detecting subtle movements

2. Measurement Performance

Selectable Full-scale Ranges: ±2g / ±4g / ±8g / ±16g(±2g for step counting; ±16g for vibration & free fall detection)Output Data Rate (ODR): Adjustable from 1.6Hz to 1600HzResolution: 12~16-bit digital outputShock Resistance: Withstands transient shock of 3000g (powered) / 10000g (unpowered)Embedded 32-level FIFO buffer to reduce host MCU reading frequency

3. Communication & Mechanical Features

Dual digital interfaces: I2C + SPITwo independent hardware interrupt pins (INT1/INT2), supporting wake-up, double-tap, free fall and orientation switch signal outputPackage: LGA-12, dimension 2×2×0.7mm, ultra-thin miniature form factorOperating Temperature Range: -40℃ ~ +85℃Embedded motion engine functions: Free fall detection, single/double tap gesture, stationary/motion wake-up, 4D/6D orientation detection for screen rotation, self-test, on-chip temperature sensor

Cross-reference ST MEMS Sensor Part Numbers

1. ASM330LHHTR: 6-axis IMU (accelerometer + gyroscope), widely used for industrial and automotive applications

2. LSM6DSK320XTR: High-performance 6-axis gyroscope + accelerometer

3. LSM6DSOETR3: 6-axis sensor from LSM6DSO series

4. LSM6DSV32XTR: New-generation 6-axis sensor with 32-bit digital output

5. LSM6DSV16XTR: 16-bit 6-axis sensor of LSM6DSV series

6. LSM303AGR: 3-axis accelerometer + 3-axis magnetometer (compass module, without gyroscope)

7. LIS2DWLTR: Ultra-low power 3-axis accelerometer
