CUS800M-24 Product Introduction

1. Product Overview

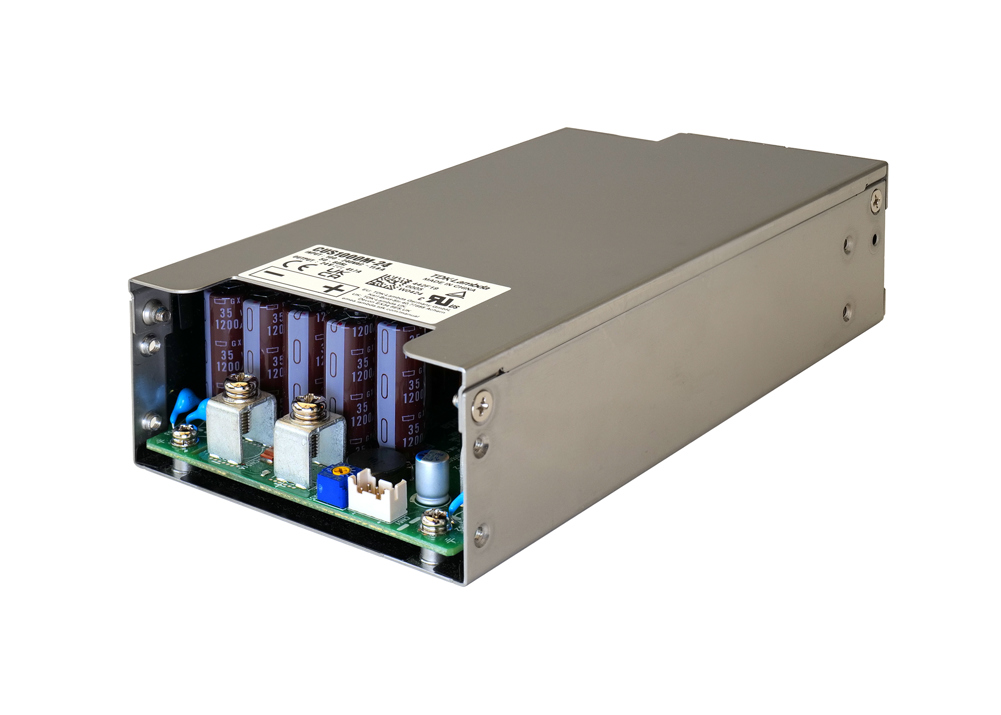

Manufacturer: TDK-LambdaModel CUS800M-24 is an 800W single-output enclosed AC-DC power supply from CUS-M series. It is dual-certified for medical and industrial applications, equipped with active PFC and variable speed cooling fan. With 2×MOPP medical isolation, it is widely adopted for medical instruments and high-power industrial equipment.

2. Key Electrical Specifications

Input

Universal AC input: 85~265VACBuilt-in active PFC, compliant with EN61000-3-2No minimum load required; standby power <0.6W at no load

Output (CUS800M-24)

Rated output: 24VDC / 800WRated current: 33.33AAdjustable range: 21.6~26.4VOvercurrent protection: >35.1A, auto-recovery short-circuit protectionOvervoltage threshold: 27.6~32.4VAuxiliary standby output: 5V/2AStandard functions: Remote On/Off, Remote Sense, Power Good signal

Mechanical & Environmental

Dimension: 170.5 × 85 × 42.5 mm compact metal enclosureWeight: ~820gCooling: Thermally controlled variable speed fan, low noise 30~42dBAOperating temp: -20℃ ~ +70℃, linear derating above 40℃Storage temp: -40℃ ~ +75℃Humidity: 10%~95%RH non-condensing

Safety & Certifications

• Medical isolation: 2×MOPP, isolation voltage 4kV, leakage current ≤0.25mA for BF medical devices

• Approvals: IEC/EN/UL60601-1 (medical), IEC/EN/UL62368-1 (ITE), CE, UKCA, RoHS, REACH

• EMC: Compliant with EN55032-B, EN55011-B

Performance

Max efficiency up to 95.5%, low heat generation, low output ripple & noise.

3. Core Advantages

1. Dual medical & industrial certifications, one unit for both medical and automation projects;

2. 2×MOPP medical isolation with ultra-low leakage current, fully compliant for patient-contact BF-type medical equipment;

3. Ultra-thin compact housing to save internal device space;

4. High efficiency plus quiet temperature-controlled fan, low temperature rise under continuous full load;

5. Built-in 5V standby, remote control and remote sense for intelligent system integration;

6. Worldwide universal AC input, auto-recovery short protection for high reliability;

7. Consistent TDK original production, full carton stock available for mass production.

4. Application Scope

1. Medical Equipment (Primary Application)Ultrasound scanners, patient monitors, dental devices, rehabilitation physiotherapy machines, blood analyzers, aesthetic medical equipment, operating room auxiliary power, BF-class medical main power supply.

2. Industrial Automation & Test & MeasurementHigh-power servo auxiliary power, PLC control cabinets, precision lab test instruments, laser equipment, automated production lines.

3. Broadcast & Imaging EquipmentProfessional cameras, studio video gear, heavy-duty motorized gimbals, high-end action camera systems (matched with LSM6DSK320XTR IMU sensors).

4. Charging & Smart AutomationSmall DC charging pile auxiliary power, warehouse AGV robots, high-power industrial LED drivers.
