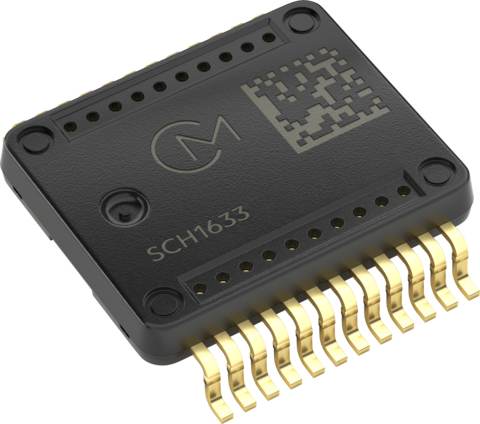

SCH1633-D01 is a Murata automotive-grade 6-axis Inertial Measurement Unit (IMU), integrating a 3-axis gyroscope and a 3-axis accelerometer.

1. Product Overview

SCH1633-D01 is an automotive-grade 6-axis Inertial Measurement Unit (IMU) manufactured by Murata. It integrates a 3-axis gyroscope and a 3-axis accelerometer based on MEMS capacitive technology, housed in an SOIC24 package. Certified to AEC-Q100 Grade 1 automotive standards and compliant with ISO 26262 functional safety ASIL-B, it is Murata’s new-generation high-precision gyroscope for vehicle navigation.Function: It captures real-time equipment attitude, angular velocity and acceleration data to support dead reckoning, positioning, attitude correction and multi-sensor fusion.

2. Core Electrical & Physical Specifications

2.1 Package Dimensions

12mm × 14mm × 3mm, SOIC-24 surface-mount package, compatible with SMT soldering, supplied in tape-and-reel form.

2.2 Measurement Ranges

• Gyroscope: Default ±300°/s, software-switchable to ±125 °/s or ±62.5 °/s

• Primary acceleration channel: ±8g; Redundant auxiliary channel: up to ±26g (for impact detection)

2.3 Precision (Key Selling Points for Customer Communication)

• Gyro bias stability: Typical 0.5°/h (ultra-low long-term drift, no positioning deviation in tunnels or GPS-denied environments)

• Angular Random Walk (ARW): As low as 0.03°/√Hz with extremely low noise

• Axis orthogonality error: Factory-calibrated to less than 0.3°, eliminating system-level calibration costs for customers

• Linearity: 0.02°/s for gyroscopes; 0.06m/s² for accelerometers, stable across full operating temperature range

2.4 Electrical Characteristics

• Supply voltage: VDD = 3.0～3.6V; I/O voltage = 1.7～3.6V

• Digital interface: SafeSPI V2.0 with 20-bit high-resolution data output

• Selectable sampling frequencies: 13/30/68/235/280/370Hz

• Built-in over 200 self-diagnosis channels for real-time fault reporting

2.5 Environmental Specifications

• Operating temperature: -40℃ to +110℃ (wide temperature range, suitable for garages with extreme temperatures and outdoor applications)

• Compliance: RoHS, ELV automotive environmental standards

3. Application Scope (Classified into Automotive, Industrial Robots & Smart Home; Differentiated for Floor Cleaning Robot Clients)

3.1 Primary Application: Automotive Vehicles (Core Original Equipment Positioning Field)

• ADAS advanced driver-assistance systems, inertial navigation for autonomous driving (continuous positioning in tunnels and underground parking lots without GNSS signals)

• Lane keeping assist, vehicle stability control

• Attitude correction for LiDAR and cameras, automatic headlight leveling

• High-precision vehicle positioning modules, dashcam attitude detection

3.2 Industrial Mobile Robots (AGV/AMR, Inspection Robots)

• Autonomous navigation and return-to-charge positioning for factory automated guided vehicles and warehouse AGVs

• Attitude leveling and anti-overturn monitoring for outdoor inspection robots and construction machinery

3.3 Drones & Low-Altitude Equipment

• Attitude stabilization, heading retention and integrated navigation for industrial inspection drones and delivery drones

3.4 High-End Commercial Cleaning Robots (Key Pitch for Floor Cleaning Robot Customers)

Comparison: SCH1633-D01 vs Consumer-Grade SCH16T

• SCH16T: For industrial and household sweeping & washing robots (consumer-grade, -40℃~85℃ operating range, no automotive functional safety certification, lower cost)

• SCH1633-D01: Automotive-grade, exclusively designed for high-end commercial sweepers, autonomous floor scrubbers and vehicle-mounted cleaning robots (models with autonomous driving, extended GPS-denied cruising and outdoor garage operation capabilities)

Cleaning Equipment Application Scenarios

• Autonomous navigation and return-to-charge positioning for large commercial sweepers and unmanned scrubbers deployed in shopping malls and hotels

• LiDAR SLAM-enabled devices supporting long-duration offline cruising, enabling high-precision mapping without Wi-Fi or GPS coverage

• Vehicle-mounted cleaning machines and outdoor garage sweepers (wide temperature tolerance from -40℃ to 110℃)

3.5 Other Extended Applications

• Inclination monitoring for bridges and tower cranes, attitude control for construction machinery, high-precision surveying and positioning equipment
