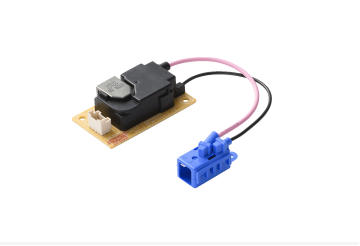

Murata Ion Generator Module

Brand: Murata (Japan)

Model: MHM324-11 (MHM324 Series)

Type: Negative Ion Generator Module (Generates negative ions via high-voltage discharge)

Structure: Separated design consisting of high-voltage power supply unit and ion emission needles

II. Main Specifications (Typical Values)

Input Voltage: DC 12V (Range: 10.8–13.2V)Input Current: Approx. 80mAPower Consumption: 1WIon Type: Negative ions (Negative oxygen ions)Ion Concentration: 8,000,000 pcs/ccOzone Output: 0.8 mg/h (Low ozone, safe for use)Operating Temperature: -10℃ ~ +55℃Operating Humidity: 20%RH ~ 80%RHDimensions (High-voltage Unit): 53 × 31 × 19.3 mmCable Length: Standard 100mm / 200mm (Optional)

III. Applications

Widely applied in equipment for air purification, sterilization, deodorization and air quality improvement:

• Air purifiers

• Air conditioners (Wall-mounted / Floor-standing)

• Fresh air systems / Ventilators

• Car air purifiers

• Fans / Heating & cooling fans

• Refrigerators, shoe cabinets and wardrobes (For sterilization and deodorization)

Working Principle

Large quantities of negative ions are generated through high-voltage corona discharge.Negative ions absorb airborne dust, bacteria and odor molecules to make them settle down or decompose.It realizes the effects of air purification, sterilization, deodorization and air freshening.
