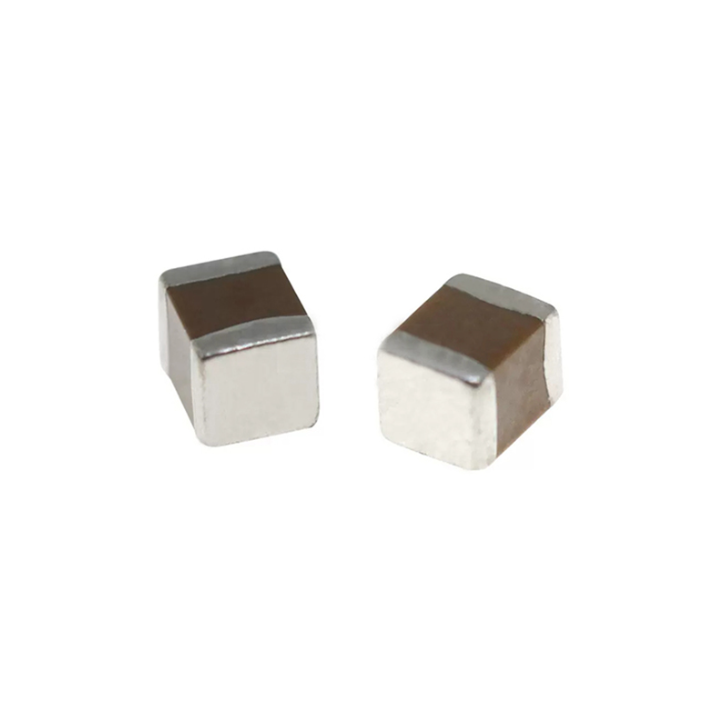

TDK Multilayer Ceramic Chip Capacitors (MLCC)

I. C3216X7T2E224KT000N (1206 Package)

C3216 Package: Metric size 3.2×1.6mm = Imperial 1206; Dimension: 3.2L×1.6W×approx.1.1~1.3mm thickness
X7T Dielectric (Temperature Characteristic): Operating temp -55℃ ~ +125℃, capacitance tolerance ±15% over full temp range. Performance sits between X7R and X5R with superior high-frequency stability vs X7R.
2E = Voltage code: Rated DC voltage 250V
224 = Capacitance: 22×104pF=0.22μF=220nF
K = Capacitance tolerance: ±10%
T000N = Internal suffix for termination & packaging specification, supplied in tape & reel packaging (1K/5K/10K per reel)

Capacitance: 220nF / 0.22μF, ±10%
Rated Voltage: DC 250V
Operating Temperature: -55℃ ~ +125℃, capacitance change ≤±15% across full temperature range
Dielectric: Class-II high permittivity X7T ceramic, Lead-free & RoHS compliant
ESR: ≤0.8Ω at low frequency, ideal for medium & high-voltage filtering
Mounting: Compatible with SMT reflow soldering & wave soldering

AC-DC & DC-DC switching power supplies: Primary-side filtering & spike absorption for adapters, battery chargers and industrial power modules
Home appliances & industrial control boards: High-voltage bypass for air conditioners, inverters and servo drivers
High-voltage filtering & EMI suppression for security equipment power supplies and LED driver power sources
DC blocking and spark suppression in high-frequency signal circuits

C3225 Package: Metric size 3.2×2.5mm = Imperial 1210; Dimension:3.2L×2.5W×approx.1.4~1.8mm thickness
X7R: Popular universal dielectric; Temp range -55℃ ~ +125℃, capacitance variation ±15%, the most widely adopted dielectric for general MLCC
1E = Voltage code: Rated DC voltage 25V
475 = Capacitance: 47×105pF=4.7μF
K = Tolerance: ±10%
T = Tape & reel packing code; suffix "N" omitted denotes standard regular parts in tape & reel
